Wolf Dual Fuel, Induction Range, and Electric Oven Racks and Oven Rack Guides Installation

Topics:

  • Install oven racks or oven rack guides in Dual Fuel, IR Induction Range, E Series, L Series, or M Series Ovens
  • Install bottom full extension oven rack
  • Install easy glide full-extension ball-bearing rack
  • Remove an easy glide full-extension ball-bearing rack

Answer:

Dual Fuel, Induction Range, and Electric Ovens, including E Series, L Series, and M Series, have blue porcelain interiors. The following instructions apply to blue porcelain models.

Rack Guides

1. To insert, find mounting screws on oven side walls, as shown below.
2. Place rack guide mounting tabs over the screws and slide down until fully seated.
  • White insulation may be visible in the bottom holes the rack guides fit into; this is normal.
  • Rack guides are left and right side specific. If the guides are switched, the racks will not fit.
  • The straight edge of the rack guide faces the rear of the oven and the curved side faces the front.
  • Rack guides for a DF48 are different for the small and large ovens. If the racks are too wide in one oven and too narrow in the other oven, swap the rack guides to the other cavity.

Regular Oven Racks

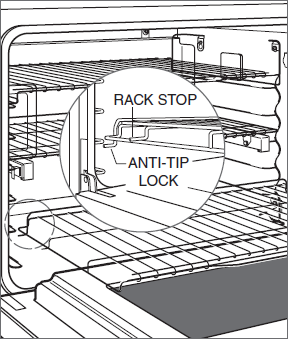

3. To insert, place the rack anti-tip lock under side rack guide rails, as shown below.
4. Slide rack back and lift up to clear rack stops.
5. Continue to slide rack back until completely inside the oven.
  • Rack position one is the bottommost location.
  • The lowest oven rack has a full-extension capability, which is supported by the oven door (excluding 18" oven).
  • The lowest oven rack is angled upwards slightly and only goes in bottom position.
  • With the rack in the lowest rack guide position, slide it onto door guides for greater stability and accessibility.
  • Verify racks are not upside down or backwards.
  • For 48" ovens, both rack guides and racks are oven-specific. Make sure they are installed in the proper sized oven.

Full-Extension Racks

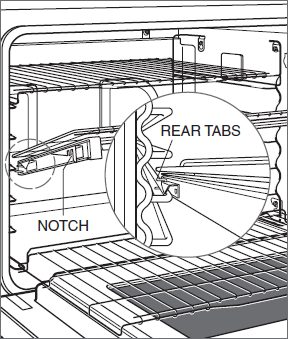

6. To insert a full-extension easy glide rack, place the two rear tabs onto the rack guide (one tab above and one below), as shown below.
  • This rack can be placed in any rack position except the bottommost rack position.
7. Angle the rack slightly and slide back until the front rack notch engages the front rack guide.
8. To remove a full-extension easy glide rack, pull the rack all the way forward, then grab the front of the rack and pull up and out.

Refer to the product Use and Care Guide for further information.
