Sub-Zero Classic Series (BI) Overlay to Framed Conversion
Topics:
- How to change a Classic (BI) overlay unit to a framed unit
- Can framed panels and a louvered grille be used on a BI model?

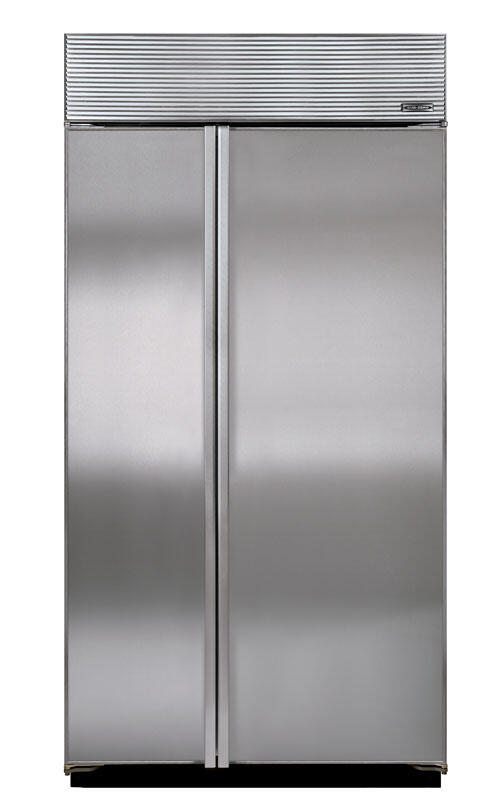

- Stainless Steel framed panels
Answer:
To convert a Classic Series (BI) unit from overlay to framed, the following are required:
- A framed handle for each door.
- A framed louvered grille insert to change the flip-up grille from overlay to framed.
The chart below provides parts needed by model.
- The louvered grille insert is for 84" finished product heights only.
- Number in parentheses (x) indicates number of handles included with the part.
- The screw covers from the overlay door/drawer trim can be reused on the framed handles.
- To reuse framed panels from an older model on a Classic series product, see Classic Framed Retrofit Kits.
Contact a Factory Certified Parts Distributor to order parts.
- Refer to the Sub-Zero Distributor Price List for further sales information, including framed door panel part numbers.
- Refer to the product Installation Guide for framed panel sizes and information.
See also, Sub-Zero Framed to Overlay Conversion.
| Model | Louvered Grille Insert | Framed Handles | Extended Framed Handles |
| BI-36R BI-36F BI-36RG | 7014850 | 7014887 (1) | 7003462 (1) |
| BI-30U BI-30UG | 7014849 | 7014888 (2) | 7003463 (2) |
| BI-36U BI-36UG | 7014850 | 7014889 (2) | 7003464 (2) |
| BI-36UFD | 7014850 | 7023375 (3) | 7023376 (3) |
| BI-36S | 7014850 | 7014890 (2) | 7003465 (2) |
| BI-42S BI-42SD BI-42SID | 7014851 | 7014890 (2) | 7003465 (2) |
| BI-42UFD | 7014851 | 7027154 (3) | 7027155 (3) |
| BI-48S BI-48SD BI-48SID | 7014852 | 7014890 (2) | 7003465 (2) |
